SinexcelPCS / inverter – string

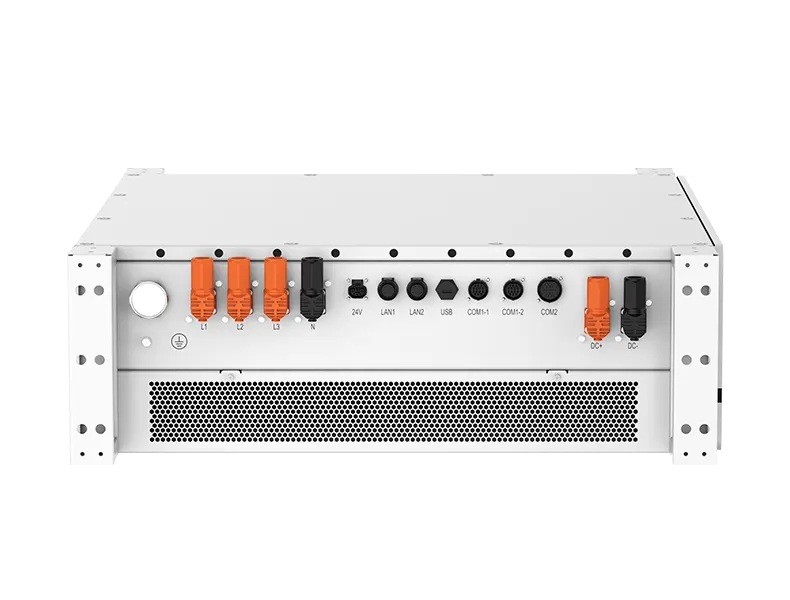

Sinexcel 160 kW HV String PCS (PWS1-160M-H-EX)
IP66 160 kVA high-voltage (up to 1500 Vdc) string PCS with VSG grid-forming, for 1500 V C&I battery racks and microgrids.
The high-voltage sibling of the Sirius 135K: 720–1500 V DC input for 1500 V battery racks, 160 kVA with 1.1× continuous and 1.5× short-time overload, 98.5 % efficiency and seamless on/off-grid transfer within 15 ms. Certified to VDE 4110, EN 50549 and G99 for European grids.
Key specifications
| Nominal power | 160 kVA (176 kVA 1.1× long-term, 1.5× 10 s stand-alone) |
|---|---|
| DC range | 720–1500 V, max 230 A |
| AC | 3P4W/3P3W 400 Vac ±15%, 50 Hz, 231 A, THDi ≤3% |
| Efficiency | 98.5% |
| Grid-forming | VSG, utility-interactive and stand-alone modes, seamless on/off-grid, response ≤15 ms |
| Enclosure | IP66, forced air, 75 dB |
| Dimensions/weight | 893×290×1080 mm, 136 kg |
| Operating temp | -25…60 °C |
| Grid codes | VDE4110, G99, EN50549-1/2/10, AS4777.2, IEC 62109+62477 |
Manufacturer data; details, options and current revision in the official datasheet. Subject to change.
Typical applications
- Peak load management in industrial parks
- Microgrids in remote areas
- Emergency backup
- Data centre backup
- 1500 V batteries
