SinexcelPCS / inverter – central / containerised

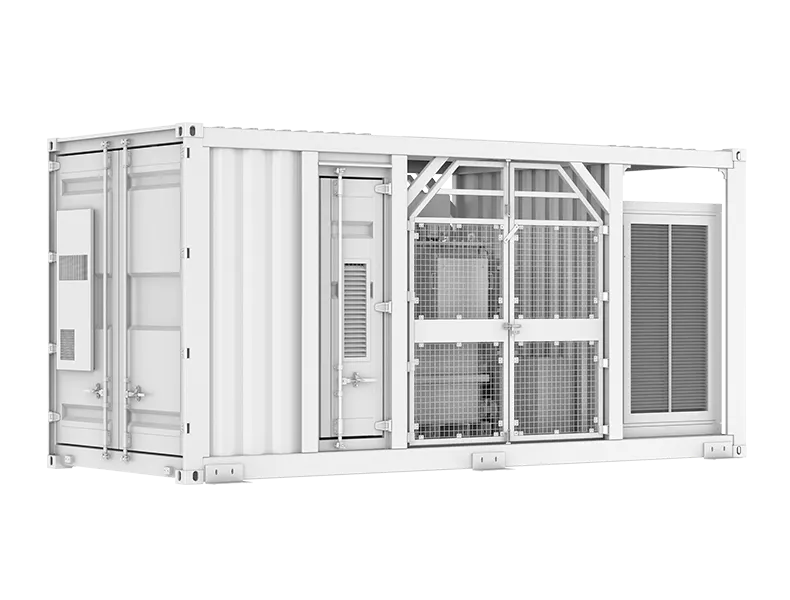

Sinexcel 20 ft 1.725 MW Modular MV Station
20 ft containerised PCS + oil-immersed MV transformer skid (10–33 kV) built around one 1725 kW modular PCS, up to 1.725 MW.
Turnkey medium-voltage connection in one 20 ft frame: the 1725 kW modular PCS, an 1825 kVA ONAN oil-immersed transformer and MV switchgear, factory-tested and shipped at under 20 tonnes. Connects a 1500 V battery container to a 10–33 kV grid with grid-forming and black-start capability.
Key specifications
| Rated power | N×215 kW @45 °C (N=1–8), 110% for 2 min |
|---|---|
| DC range | 1000–1500 V, multi-branch DC inputs |
| MV output | 10–33 kV, 50 Hz, LV 690 V |
| Transformer | 1825 kVA ONAN oil-immersed |
| Inverter max efficiency | 98.5% |
| Grid-forming | VSG/PQ/VF, black start, LVRT/HVRT, response <20 ms |
| Enclosure/cooling | IP54 overall, forced air |
| Dimensions/weight | 6058×2896×2438 mm, ≤20 t |
| Operating temp | -25…60 °C |
| Certifications | IEC62477, IEC61000, G99, VDE4110, EN50549-2, IEC60076, IEC62271 |
Manufacturer data; details, options and current revision in the official datasheet. Subject to change.
Typical applications
- Turnkey MV connection for front-of-meter BESS
- MV connection of large C&I storage
